Exploring the Specifications of CFA Multifunctional Long Auger Drilling Rigs
CFA Multifunctional Long Auger Drilling Rigs change how drilling is done. They are great for city projects because they reduce noise and shaking. These rigs have smart systems to check torque and use data to work better. They can handle different soil types using special hybrid methods. Whether in busy cities or tough ground, these rigs are accurate and dependable.
Key Takeaways
- CFA Long Auger Drilling Rigs are great for city projects. They are quiet and don’t shake much, so they work well in busy places.
- These rigs drill and inject concrete at the same time. This saves time and means fewer tools are needed for building.
- The smart control system checks drilling details as it works. This makes drilling more accurate and helps avoid mistakes.
- CFA rigs work with many types of soil. They can be used for small homes or big construction projects.
- Taking care of parts like the auger and power system is important. This keeps the rig working well and lasting longer.

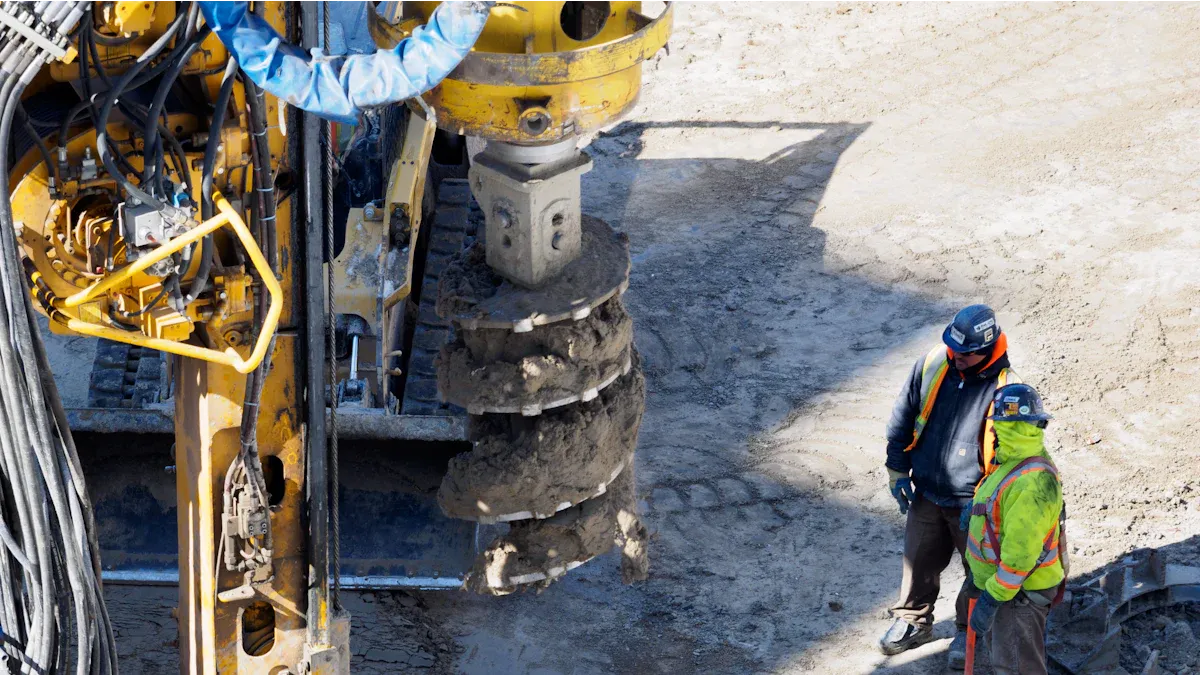

Key Components of CFA Multifunctional Long Auger Drilling Rigs
Knowing the main parts of a CFA Multifunctional Long Auger Drilling Rig helps you understand its advanced features. Each part is important for smooth and accurate drilling. Let’s break down these components.
Auger System
The auger system is the most important part of the rig. It uses a long, spiral-shaped tool to dig into the ground and remove soil at the same time. This system helps create strong, deep foundations without stopping. Its design makes soil removal easy and prevents clogs. The auger can drill up to 15 meters deep and 700 millimeters wide. This makes it perfect for many construction jobs. It works well in different types of soil, making it dependable.
Hydraulic Power Unit
The hydraulic power unit gives the rig the strength it needs to work. It powers the auger, mast, and other key parts. This unit keeps the rig running smoothly, even in tough conditions. It can handle a pressure of 34.3 MPa and a torque of 125 kN.m. This means it’s strong enough for hard jobs. You can trust this system to keep the rig steady and accurate while drilling.
Control System
The control system acts like the rig’s brain. It lets you watch and adjust how the rig works in real time. Sensors and software give data about torque, depth, and speed. This helps you make smart choices while working. Automation makes the rig more accurate and reduces mistakes. This system saves time and effort, whether the project is small or big. It makes hard tasks easier to manage.
| Parameter | Value |
|---|---|
| Max. drilling depth (CFA) | 15m |
| Max. diameter (CFA) | 700mm |
| Main winch line pull (CFA) | 240 kN |
| Max. drilling depth (Rotary) | 37m |
| Max. diameter (Rotary) | 1300 mm |
| Main winch line pull (Rotary) | 120 kN |
| Max. torque | 125 kN.m |
| Max. operating pressure | 34.3 MPa |
| Total weight | 35 t |
Tip: Take care of these parts regularly to keep your CFA Multifunctional Long Auger Drilling Rig working well for a long time.
Drilling Mast and Frame
The drilling mast and frame are the main support parts of a CFA Multifunctional Long Auger Drilling Rig. They help keep the rig steady and accurate during drilling. The mast is like a tall arm that guides the auger as it digs. Its strong design lets the rig handle deep and wide drilling jobs.
Why are the mast and frame important?
- Stability: The mast keeps the auger straight, even in tough soil. This helps with precise drilling.
- Durability: The frame is made from tough materials to handle heavy loads and shaking. This makes the rig last longer.
- Adjustability: Many rigs let you change the mast’s height and angle. This makes it easier to work on different projects.
Note: Check the mast and frame often to avoid damage. Keeping them in good shape helps the rig work well for a long time.
| Feature | Benefit |
|---|---|
| Strong materials | Handles heavy loads |
| Adjustable mast height | Works for different depths |
| Reinforced frame design | Reduces shaking during drilling |
The mast and frame are key to the rig’s stability and accuracy. Without them, drilling would not be as precise or reliable.
Chassis and Mobility Features
The chassis and mobility parts decide how easy it is to move the rig. A good chassis keeps the rig steady while working, and mobility features make moving and setting up faster.
Important mobility features include:
- Tracked or Wheeled Base: Tracked bases grip uneven ground better. Wheeled bases work well on smooth surfaces.
- Compact Design: The small size of the chassis helps it fit into tight spaces. This is great for city projects.
- Hydraulic Leveling System: This system balances the rig on sloped or bumpy ground. It makes drilling safer and more accurate.
Tip: Always check the ground before setting up the rig. Proper placement avoids accidents and improves drilling results.
| Mobility Feature | Advantage |
|---|---|
| Tracked base | Grips rough ground better |
| Compact chassis | Fits into small spaces |
| Hydraulic leveling | Balances on uneven ground |
The chassis and mobility features make moving and using the rig simple. Whether in a crowded city or a faraway site, these features help the rig work well.
Functionality of CFA Multifunctional Long Auger Drilling Rigs
Continuous Flight Auger Process
The continuous flight auger (CFA) process is key to these rigs. It uses a spiral-shaped tool to dig and remove soil at once. This design keeps the hole stable while drilling. The process creates strong foundations without stopping.
Studies show this method works well in tough conditions:
- It lowers the chance of soil problems like liquefaction.
- It performs well in tricky soils like clay or sand.
This process is also good for the environment. It makes less noise and vibration, which is great for city projects. The CFA method helps with accurate and steady drilling, making it reliable for modern needs.
Soil Removal and Concrete Injection
These rigs are great at removing soil and adding concrete. The auger pulls out soil while keeping the hole intact. This saves time and keeps the work smooth. After reaching the right depth, concrete is pumped into the hole under pressure. This fills gaps and makes a strong base.
Tests prove this method works well:
- The auger removes soil easily, even in mixed types like gravel.
- Pressurized concrete fills the hole completely, avoiding weak spots.
- It adjusts to different soils, showing its flexibility in many places.
This system makes building faster and easier. Whether for homes or big projects, it gives solid and reliable results.
Automation and Precision in Operation
Automation helps these rigs work better and faster. Smart systems track torque, depth, and speed as you drill. You can adjust things quickly to avoid mistakes and save time.
Sensors and software make drilling more accurate. They reduce waste and improve how the rig performs. Automation makes hard jobs simpler and boosts productivity.
With strong engineering and smart tools, these rigs are precise and safe. They meet modern construction needs while staying efficient and dependable.
Depth and Diameter Capabilities
CFA Multifunctional Long Auger Drilling Rigs are great for many projects. They can handle different depths and hole sizes. This makes them useful for various construction and soil jobs. These rigs can meet your needs, whether for shallow or deep drilling.
Depth Capabilities
These rigs can drill very deep for strong foundations. For CFA drilling, they reach up to 15 meters. Rotary drilling goes even deeper, up to 37 meters. This range lets you work on small homes or big infrastructure projects.
Did You Know?
A rig’s depth depends on its mast, auger, and hydraulic power. Regular care helps it perform well at its deepest levels.
Diameter Capabilities
The size of the hole is also important. CFA rigs drill holes up to 700 millimeters wide. Rotary drilling can make holes as wide as 1,300 millimeters. This flexibility helps with different soil types and building needs.
| Drilling Type | Max. Depth | Max. Diameter |
|---|---|---|
| CFA Drilling | 15 meters | 700 mm |
| Rotary Drilling | 37 meters | 1,300 mm |
These depth and diameter options let the rig handle many tasks. From tall buildings to bridge bases, these rigs give dependable results.
Torque and Speed Adjustments
Torque and speed are key for drilling. They help the rig work well in different soils. CFA Multifunctional Long Auger Drilling Rigs let you adjust these settings easily.
Torque Adjustments
Torque is the twisting force of the auger. High torque is needed for hard or rocky soils. Lower torque works better for soft ground. These rigs offer up to 125 kN.m of torque, making tough jobs easier.
- Why Torque Matters:
- High torque helps drill through hard soils.
- It stops the auger from getting stuck or breaking.
- Adjustable torque saves energy and improves performance.
Speed Adjustments
Speed controls how fast the auger spins and digs. Faster speeds are good for soft soils. Slower speeds are better for hard materials. Adjusting speed helps you drill accurately and reach the right depth.
Pro Tip:
Watch torque and speed while drilling. Change them based on the soil to work faster and protect the rig.
By using torque and speed adjustments, you can make your rig work better. These features improve accuracy and help the rig last longer.
Advantages of CFA Multifunctional Long Auger Drilling Rigs
Speed and Efficiency
CFA Multifunctional Long Auger Drilling Rigs help finish jobs quickly. They dig and add concrete at the same time, skipping extra steps. This method saves time and keeps work moving smoothly.
These rigs let you change torque and speed settings easily. You can adjust them for different soil types to drill better. Whether for small homes or big projects, they save time without losing quality.
Tip: Use the rig’s smart tools to track progress. Automation reduces mistakes and keeps work steady, making it even faster.
Reduced Environmental Impact
These rigs are great for eco-friendly building. They make less noise and shaking, which is perfect for cities. You can work near homes without bothering people.
The CFA drilling process keeps the hole steady and avoids moving too much soil. This stops soil problems and protects the area around the site. It’s a greener way to build.
Note: Pick CFA Multifunctional Long Auger Drilling Rigs for low-impact projects. Their advanced design supports eco-friendly construction.
Versatility in Soil Conditions
These rigs work well in many soil types. Whether it’s clay, sand, or gravel, they stay steady and accurate. The auger adjusts to different soil densities for smooth drilling.
You can use these rigs on tough ground or mixed soils. They handle various depths and widths, making them useful for many jobs. From small homes to big bridges, they are flexible and reliable.
Pro Tip: Check the soil before starting. Change torque and speed to match the soil for the best results.
Cost-Effectiveness
CFA Multifunctional Long Auger Drilling Rigs help save money. They combine soil removal and concrete injection in one step. This means you need fewer tools and workers. It also makes projects faster and cheaper.
You can change torque and speed to fit the soil. This lowers wear on the rig and cuts repair costs. It also helps the rig last longer. Automation avoids mistakes by making drilling and concrete placement more accurate.
Tip: Use the rig’s live monitoring system to check its work. It shows problems early, helping you fix them and save money.
These rigs use less fuel than older rotary rigs. Their small size and smart hydraulic systems save energy. This makes them a good choice for long-term jobs.
| Feature | Cost-Saving Benefit |
|---|---|
| Combined drilling process | Needs fewer tools and workers |
| Adjustable settings | Cuts repair costs |
| Automation | Avoids expensive mistakes |
| Fuel efficiency | Saves energy and money |
Buying a CFA rig is a smart investment. It works well, costs less to run, and finishes jobs faster. This makes it great for contractors who want to save money.
Enhanced Safety Features
Safety is very important with CFA Multifunctional Long Auger Drilling Rigs. These rigs have advanced tools to keep workers safe.
Automation reduces mistakes by watching torque, depth, and speed. It keeps the rig working safely and avoids accidents. Sensors find problems early so you can fix them quickly.
Note: Always check the rig’s safety tools before starting work. Regular checks keep it safe and ready to use.
The hydraulic leveling system keeps the rig steady on uneven ground. The strong frame and mast handle heavy loads and shaking without breaking.
| Safety Feature | Benefit |
|---|---|
| Automation | Lowers human mistakes |
| Hydraulic leveling | Stops tipping |
| Reinforced frame | Safely holds heavy loads |
| Early-warning sensors | Spots problems early |
With these safety features, you can work without worry. The rig is built to protect both workers and the machine.
Applications of CFA Multifunctional Long Auger Drilling Rigs
Foundation Construction
CFA rigs are great for building strong foundations. They drill deep and wide holes for many types of structures. These rigs remove soil and inject concrete in one step. This process stops soil from collapsing and makes a solid base for buildings.
They work well for projects needing deep foundations, like tall buildings or factories. Their accuracy and speed help contractors save time and money. Using these rigs ensures your foundation meets today’s building standards.
Infrastructure Projects
CFA rigs are perfect for big infrastructure jobs. They handle projects like bridges, highways, and tunnels easily. These rigs drill large holes and work well in tight spaces.
| Feature | Benefit |
|---|---|
| Drilling Ability | Handles large holes |
| Mobility | Works in small spaces |
| Cabin Comfort | Keeps operators comfortable |
| Operation Ease | Simple to use |
| Maintenance | Easy to maintain |
The rigs have systems for rotary movement, making them flexible for different tasks. Hydraulic systems keep them running smoothly, and their design makes transport and setup simple. These features make them ideal for tough infrastructure projects.
Residential and Commercial Building Sites
CFA rigs are popular for homes and business buildings. As cities grow, these rigs are used more for urban construction. They drill deep foundations while keeping noise and shaking low.
These rigs work in many soil types, making them useful for different projects. Whether for small homes or big offices, they give reliable results. Their eco-friendly design supports green building, making them a smart choice for modern construction.
Specialized Geotechnical Projects
CFA Multifunctional Long Auger Drilling Rigs are great for tough geotechnical jobs. These projects often need special tools for tricky soil or unique sites. These rigs give accurate and quick results in hard conditions.
Why Use CFA Rigs for Geotechnical Jobs?
- Works Well in Different Soils
These rigs can drill through clay, sand, gravel, and mixed soils. You can change torque and speed to match the soil type. This helps keep drilling steady and accurate, even in uneven ground. - Careful in Sensitive Areas
Some projects need less soil movement and noise. CFA rigs make less shaking and sound, which is good for cities or nature areas. You can drill safely without harming nearby buildings or the environment. - Handles Complex Tasks
These rigs can do hard jobs like fixing weak soil, building walls, or improving ground. They drill deep and wide holes to meet the needs of special projects.
Tip: Use the rig’s live tracking system to check depth and torque. This keeps drilling accurate and avoids mistakes.
Examples of Special Uses
| Job | Benefit |
|---|---|
| Building retaining walls | Stops soil from sliding |
| Fixing weak soil | Makes ground stronger |
| Improving ground | Prepares for heavy buildings |
CFA Multifunctional Long Auger Drilling Rigs are perfect for geotechnical work. They are flexible, accurate, and have advanced tools to help engineers and builders succeed.
Comparison with Rotary Drilling Rigs
Operational Differences
CFA rigs and rotary rigs work differently. CFA rigs use a continuous flight auger to drill and remove soil at the same time. This keeps the hole steady and lets concrete flow through the auger quickly. Rotary rigs use a spinning drill bit to cut the ground. Soil is removed with tools or fluid, and concrete is added later after placing a casing.
CFA rigs combine drilling and concreting in one step. This makes them faster for projects needing quick results. Rotary rigs are better for deeper jobs where separate steps are needed.
Tip: Pick CFA rigs for city projects needing speed and less noise. Use rotary rigs for deep drilling or hard rock areas.
Performance in Various Soil Types
CFA rigs work best in soft soils like clay, sand, or gravel. Their auger design removes soil smoothly and keeps the hole stable. Rotary rigs are stronger in hard soils and rocks because of their tough drill bits.
CFA rigs are quieter and shake less, making them great for cities. Rotary rigs make more noise and vibration, which can bother nearby areas.
| Feature | CFA Rig | Rotary Rig |
|---|---|---|
| Drilling Method | Continuous flight auger | Rotary drill bit |
| Soil Removal | Auger flights | Mechanical or drilling fluid |
| Noise and Vibration | Lower | Higher |
| Suitability | Urban environments, varied soils | Deep foundations, rocks |
Cost and Efficiency Analysis
CFA rigs save money by combining drilling and concreting into one process. This means fewer tools and workers are needed, lowering costs. Rotary rigs take more time and money because drilling and concreting are done separately.
CFA rigs also use less fuel due to their smart design and hydraulic systems. They move less soil, cutting cleanup costs. Rotary rigs are better for very deep jobs but cost more overall.
For most city and mid-depth projects, CFA rigs are cheaper and faster. Rotary rigs are worth the cost for deep drilling or tough rock layers.
Pro Tip: Choose CFA rigs for tight budgets and quick timelines. Use rotary rigs for deep or rocky projects.
Environmental Considerations
CFA Multifunctional Long Auger Drilling Rigs are built to protect nature. They are great for eco-friendly projects because they lower noise, shaking, and soil damage.
These rigs are very quiet, making them perfect for cities. They create less shaking than older rotary rigs, keeping nearby buildings safe from harm.
The CFA drilling method is also kind to the environment. It removes soil neatly without digging too much. This keeps the area clean and reduces waste. Concrete is added directly into the hole, stopping soil from falling in and keeping the ground steady.
Tip: Use CFA rigs near homes or nature areas. Their design follows strict environmental rules and keeps the surroundings safe.
Another benefit is their energy-saving design. These rigs use less fuel because of smart hydraulic systems. This cuts pollution and supports green building goals. Choosing CFA rigs helps make construction more eco-friendly.
| Environmental Feature | Benefit |
|---|---|
| Low noise and vibration | Protects nearby buildings |
| Neat soil removal | Less waste and mess |
| Fuel-saving systems | Reduces pollution |
Suitability for Specific Projects
CFA Multifunctional Long Auger Drilling Rigs work well for many jobs. Their flexibility makes them useful for engineers and builders. They can handle small home foundations or big infrastructure projects.
For city jobs, these rigs are a great pick. Their small size fits tight spaces, and they work quietly. This makes them ideal for places with strict noise rules.
In tough soil jobs, CFA rigs perform well. They handle clay, sand, and gravel easily. Their accuracy makes them reliable for tricky geotechnical tasks.
Pro Tip: Check the rig’s power and depth for your project. For deep holes or hard ground, make sure it meets the job’s needs.
These rigs are also great for nature-sensitive areas. Their low impact keeps nearby ecosystems safe. You can trust them for work near lakes, forests, or protected zones.
| Project Type | Why CFA Rigs Are Suitable |
|---|---|
| City construction | Small, quiet, and effective |
| Tough soil projects | Works well in different soils |
| Nature-sensitive areas | Low noise and gentle on nature |
By using CFA rigs, you get accurate, efficient, and eco-friendly results for your projects.
CFA Multifunctional Long Auger Drilling Rigs use advanced tools for building. They work well in different soil types with great accuracy. These rigs are eco-friendly and make hard jobs easier. Their flexibility is better than older rotary rigs. Builders and engineers save money and get dependable results.
Tip: Pick these rigs for green and fast drilling projects.
FAQ
1. What projects are CFA rigs best for?
CFA rigs work well in cities, big infrastructure, and soil jobs. They drill quietly and handle tough ground easily.
2. How do CFA rigs help the environment?
CFA rigs make less noise and shaking while drilling. They remove soil neatly and add concrete directly. Their fuel-saving design is good for green building.
3. Can CFA rigs work in different soils?
Yes, CFA rigs can drill in clay, sand, and gravel. You can change torque and speed to match the soil for smooth drilling.
4. How deep and wide can CFA rigs drill?
CFA rigs drill up to 15 meters deep and 700 millimeters wide. Rotary rigs go deeper, up to 37 meters, and wider, up to 1,300 millimeters.
5. Are CFA rigs cheaper than rotary rigs?
CFA rigs save money by drilling and adding concrete in one step. They need fewer tools, use less fuel, and cost less to fix with smart settings.
