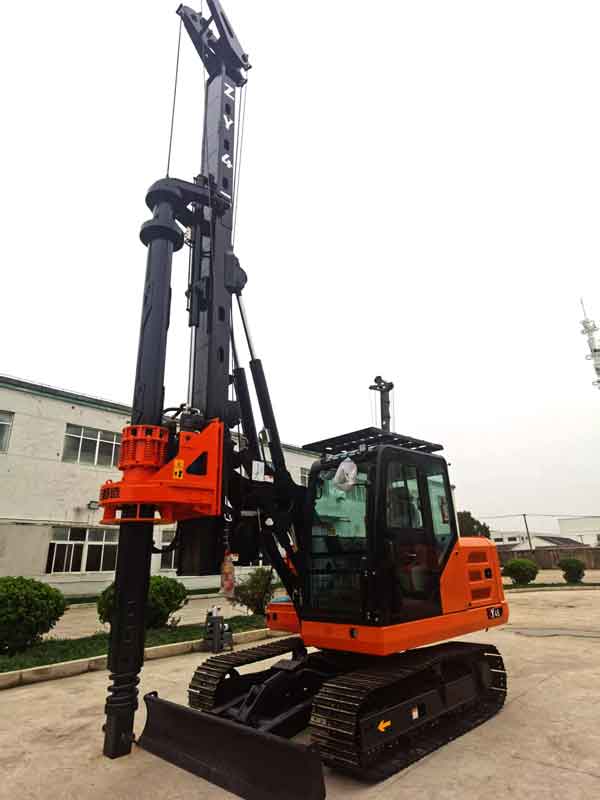

ZY45 Rotary Drilling Rig
ZY45 Rotary Drilling Rig

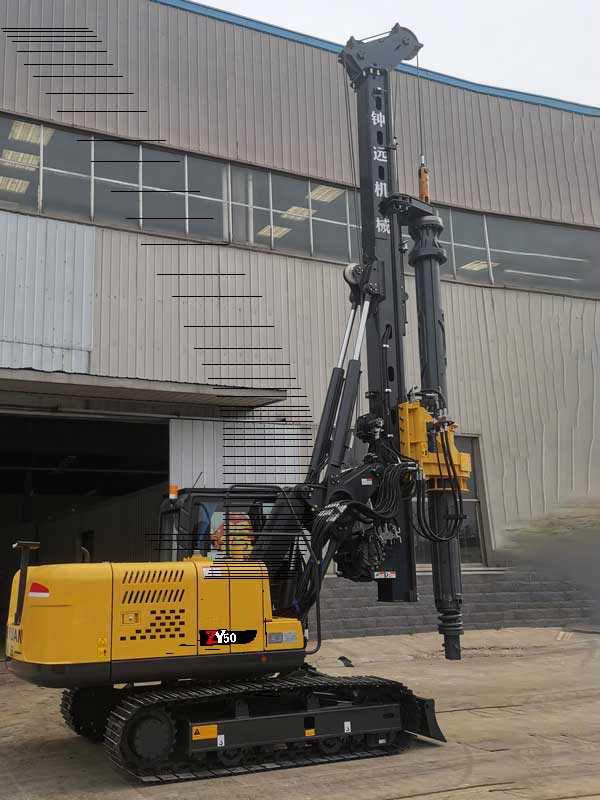

ZY50 Rotary Drilling Rig
Company
Established in 2019,Zhongyuan Machinery (Shanghai) Co., Ltd. is a rotary drilling rig enterprise focusing on R&D, production, sales and service.
Features
Most Recent Posts
- All Post
- Company news
- Knowledge Center
ZY45旋挖钻机(ZY45Performance parameters) |
|||
| 主要参数(Main parameter) | 单位(Units) | 参数(Parameters) | |
| 底盘 Chasis | |||
| 底盘型号Chassis type | ZY45 | ||
| 发动机型号 Engine Model | WeichaiWP3.2 | ||
| 发动机功率/转速 Rated Power/Rotary Speed | kW/rpm | 36.8/2200 | |
| 履带展开宽度（外边距） Track width(margin) | mm | 2260 | |
| 履带宽度 Track shoe width | mm | 450 | |
| 动力头 Rotary Drive | |||
| 最大输出扭矩 Max.output torque | kN•m | 45 | |
| 动力头转速 Rotary speed | rpm | 0-45 | |
| 最大加压力 Max.pull-down piston push | kN | 70 | |
| 最大起拔力 Max.pull-down piston pull | kN | 60 | |
| 加压油缸行程 Max.pull-down piston strlke | mm | 1500 | |
| 主卷扬 Main winch | |||
| 最大提升力 Max.pulling force | kN | 55 | |
| 最大提升速度 Max.pulling speed | m/min | 50 | |
| 钢丝绳直径 Wire Rope Diameter | mm | φ16 | |
| 副卷扬 Auxiliary winch | |||
| 最大提升力 Max.pulling force | kN | 15 | |
| 最大提升速度 Max.pulling speed | m/min | 50 | |
| 钢丝绳直径 Wire Rope Diameter | mm | φ10 | |
| 作业倾角 Mast Rake | |||
| 桅杆前倾斜角度 Forwards backwards | ° | 5 | |
| 桅杆左右倾斜角度 Side backwards | ° | ±4 | |
| 液压系统 Hydraulic system | |||
| 主泵最大工作压力 Max.working pressure of | main pump | MPa | 30 |
| 钻孔 Drilling hole | |||
| 最大钻孔直径 Max.Drilling Diameter | mm | 1000 | |
| 最大钻孔深度 The max.drilling depth | m | 15 | |
| 主机 Main machine | |||
| 工作状态整机重量 Total working weight | t | 13 | |
| 运输状态（长×宽×高）Transporting state | size | mm | 7260x2260x3000 |
| 作业状态（长×宽×高）Working state size | mm | 4560x2260x8640 | |
| 推荐钻杆型号 Recommended drill pipe type | |||
| 摩阻杆配置 Friction rod configuration | MZ240-4-4.5 | ||
| 机锁杆配置 Machine lock lever configuration | JS240-4-4.5 | ||
